How to choose your roulette?

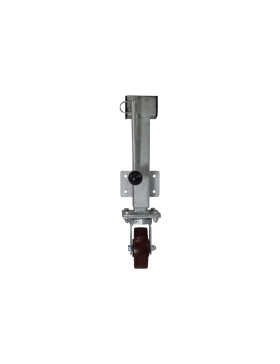

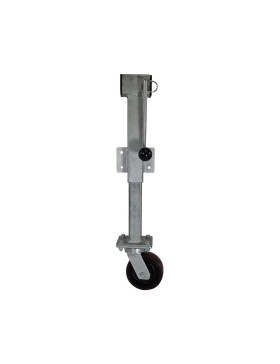

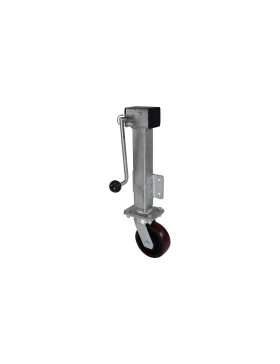

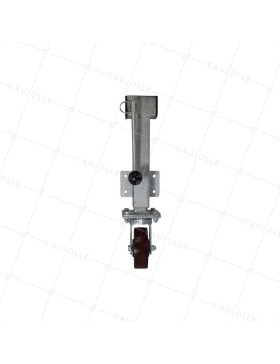

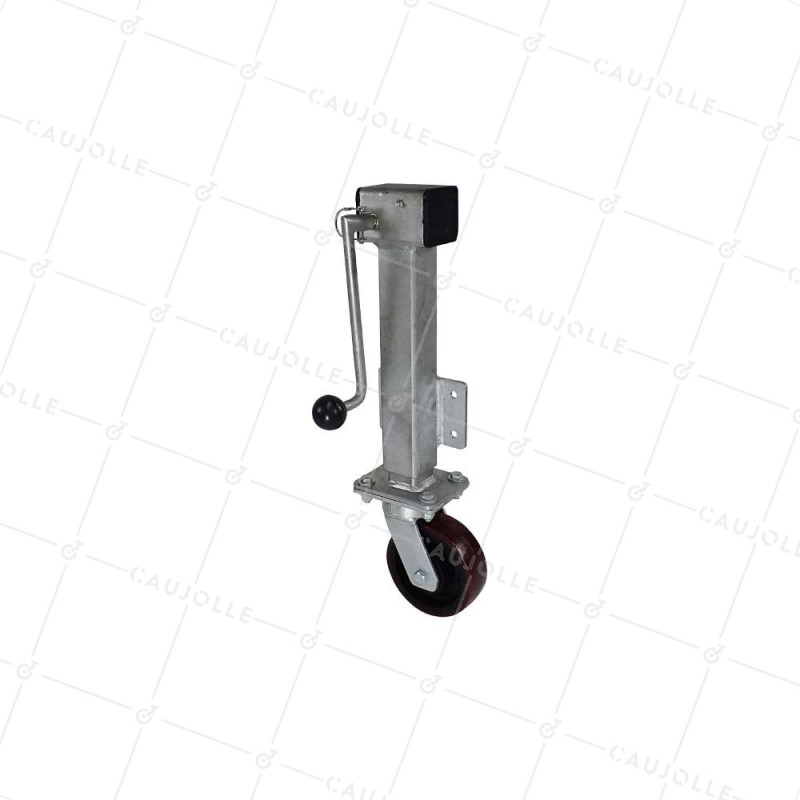

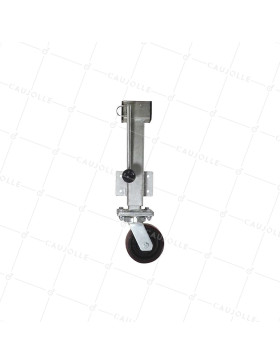

Castor Retractable WITH A CRANK FOR A 20 CM STROKE DIAMETER 150 MM WITH BRAKE LOAD 750 KG

€429.97 Tax included

REF: 60892

Discover our industrial lifting caster, designed for the most demanding environments. Its ultra-robust construction in 6 mm steel with a side plate of 100x150 mm (4 M10 holes) ensures unparalleled strength for your heavy equipment.

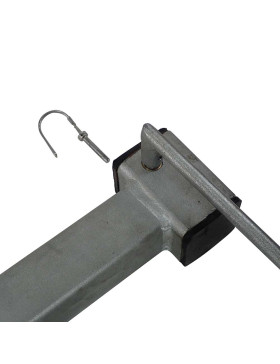

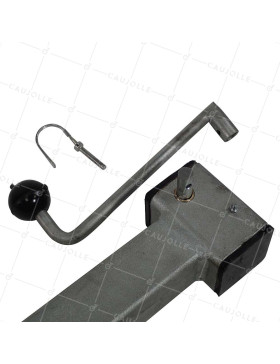

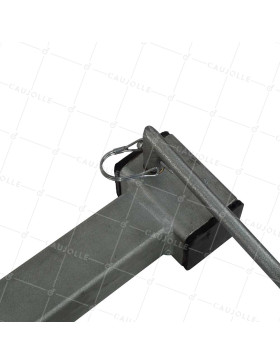

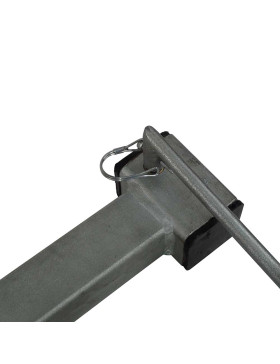

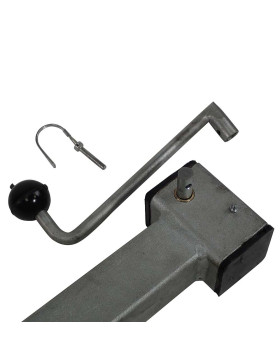

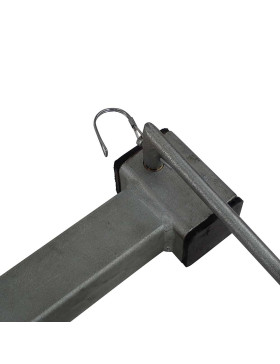

Its major advantage: a vertical travel of 200 mm! Turn the crank (rubber part for comfort) to precisely adjust the height from 620 mm to 820 mm (4 mm/turn). Ideal for lifting industrial machines.

Designed to last outdoors, the entire unit is hot-dipped galvanized and the handle is zinc-coated, perfectly resistant to corrosion. The wheel made of polyurethane with a brake supports extreme static loads, and the double ball bearing ensures smooth rotation. Two grease fittings extend the lifespan and facilitate maintenance.

We can also provide you with the 3D plan of the model upon request or design a model with a brake that can withstand loads of 1 ton each, totaling 3 tons on 4 casters.

Out-of-Stock

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Load capacity in kilograms 750

  • Material of the tread Polyurethane

  • Type of bearing Bearing ball bearing

  • Type fixation Pivoting to plate (plate)

  • Height castor in mm 625

  • Specificities Strong load

  • Bore in mm 12

  • Dimension plate in mm 100x150

  • Distance center distance in mm 60x110

  • Fixation diameter in mm M12

  • Width of the wheel in mm 50

  • Length of the hub in mm 60

  • Brake With brake

  • Width of the tread in mm 50

  • Offset in mm 42

  • Dimensions in mm 135

  • Maximum speed in km/h 4 km/h translates to 4 kilometers per hour in English.

  • Minimum / Maximum Temperature in °C -20/+80

  • Directional lock Optional

  • Weight 13.310 Kg
