WELDING RAIL FOR SELF-SUPPORTING GATE LENGTH 3M MEDIUM SERIES LOAD 600 KG

€189.00 Tax included

REF: 62399

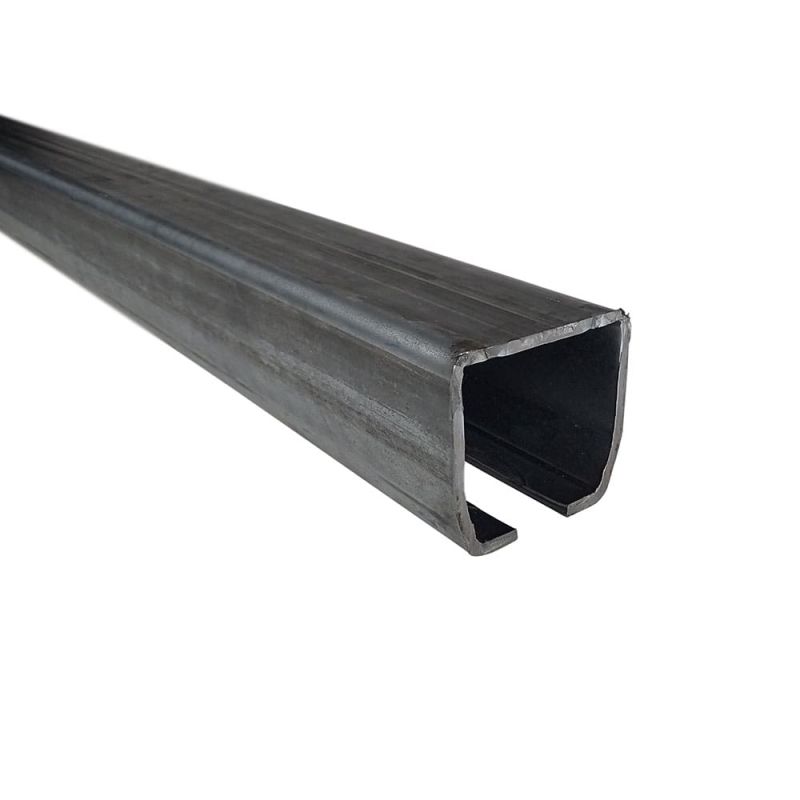

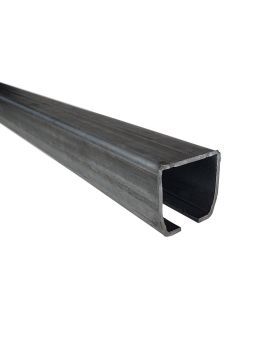

Galvanized steel with a thickness of 4.5 mm for a cantilever gate with a maximum opening of 10 meters.

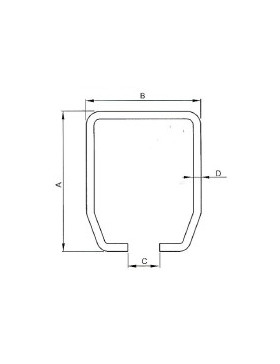

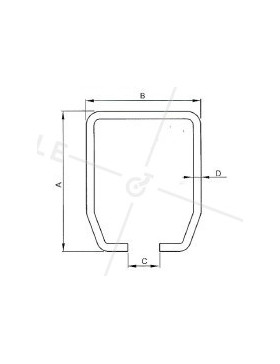

A = 75mm
B = 80mm
C = 22mm
D = 4.5mm

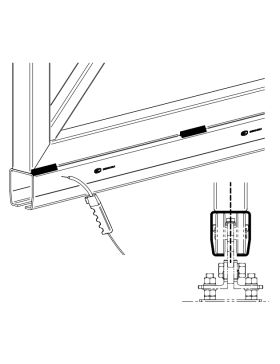

Length of 3 meters, weldable and positioned under the gate.

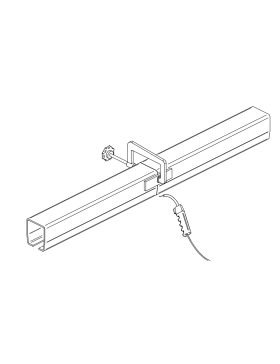

Each section of the rail must be welded with a continuous bead, ensuring to clean the support well beforehand and to align everything properly (each edge must be perfectly aligned). We deliver bars with perfect cuts at the ends, which makes installation easier. We recommend MIG or TIG welding.

For an opening of 4 meters, you will need 6.75 m of rail.

For an opening of 6 meters, you will need 9.45 m of rail.

For an opening of 8 meters, you will need 12.10 m of rail.

For an opening of 10 meters, you will need 14.65 m of rail.

Compatible with the complete kit reference 90004

Expédition sous 24h ouvrées

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 58

  • Load capacity in kilograms 600

  • Material of the tread Steel

  • Maximum speed in km/h 4

  • Weight 10.019 Kg

Download

self-propelled

Rail and self-supporting mount

Download (441.42KB)
