VINTAGE CAST IRON ROLLER DIAMETER 100MM LOAD 250KG WITH SMOOTH SHAFT OF 20 MM - INDUS STYL 100 TL 20 TO WELD

€79.99 Tax included

REF: 99157

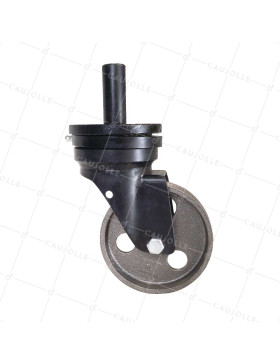

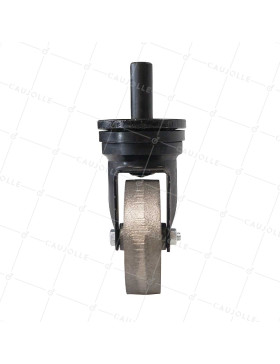

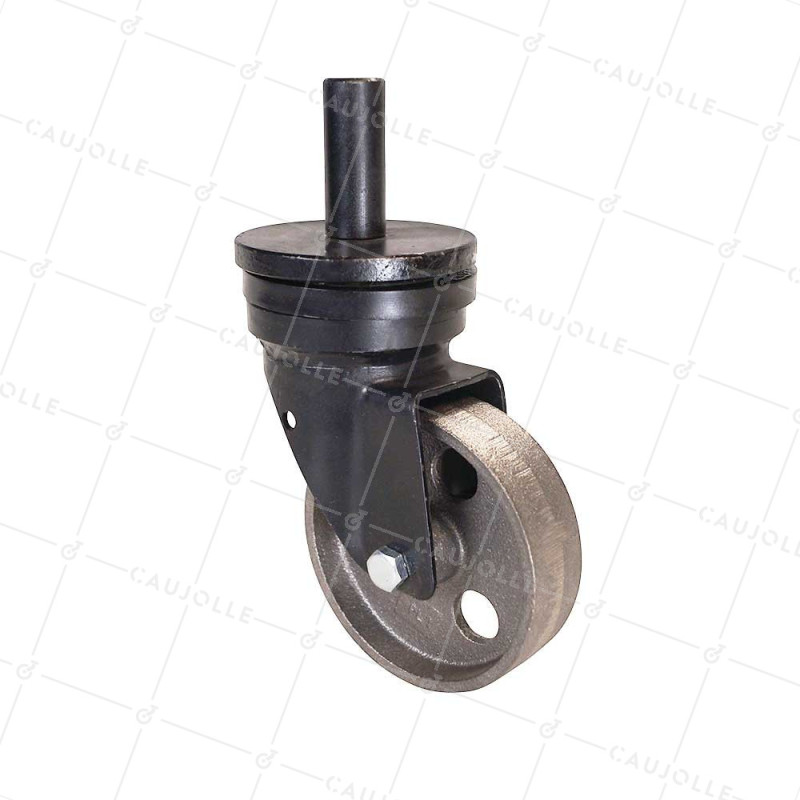

Designed to meet the most demanding industrial challenges, this 100 mm solid castor is the ideal ally for your heavy handling and extreme temperature applications. Equipped with a swivel mount with a smooth stem, it integrates perfectly into round tube structures (foundry carts, furnaces, industrial racks). Its black epoxy paint finish provides excellent durability and a polished appearance.

Technical Specifications

  • Wheel Diameter: 100 mm

  • Wheel Material: Solid cast iron

  • Hub Type: Smooth

  • Mount Type: Swivel with smooth stem

  • Stem Diameter: 20 mm

  • Stem Length: 50 mm

  • Mount Finish: Steel with black epoxy paint

  • Thermal Resistance: Up to 500°C (under conditions)

  • Ultra-Resistant: The solid cast wheel can support very heavy loads without deformation.

  • High Temperature (up to 500°C): Ideal for harsh thermal environments (furnaces, ovens, foundries).

  • Versatile and Simple Mounting: Its 20 mm stem is specifically designed to fit into a round tube. Two mounting options are available:

    • By Pin: by simultaneously drilling the tube and the metal stem.

    • By Welding: directly to your steel structure.

Usage Tips and Recommendations

Adjustment for High Temperature: For use in extreme environments up to 500°C, be sure to cut the black plastic ball cover located under the mounting plate beforehand to prevent it from melting.

Floor Compatibility: Due to the hardness of its cast body, this castor is highly discouraged on fragile surfaces like parquet or tiles (risk of scratches or cracks). However, it is fully recommended for intensive use on concrete floors or industrial surfaces.

Expédition sous 24h ouvrées

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 100

  • Load capacity in kilograms 250

  • Material of the tread Source

  • Type of bearing Plain bore hub

  • Type fixation Smooth rod

  • Height of the roulette in mm 202

  • Specificities Heat resistant

  • Diameter of fixation in mm M20

  • Hub length in mm 50

  • Rod diameter in mm 20

  • Width of the bearing band in mm 32

  • Offset in mm 35

  • Dimensions in mm 85

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -100/+600

  • Weight 2.100 Kg
