How to choose your roulette?

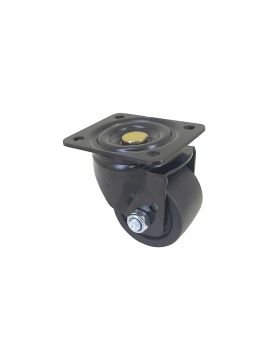

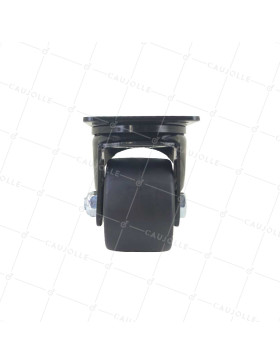

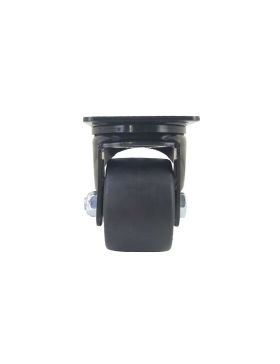

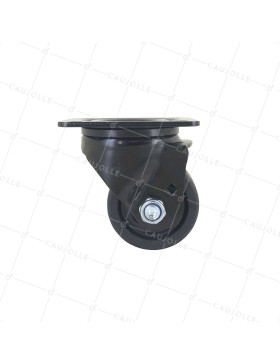

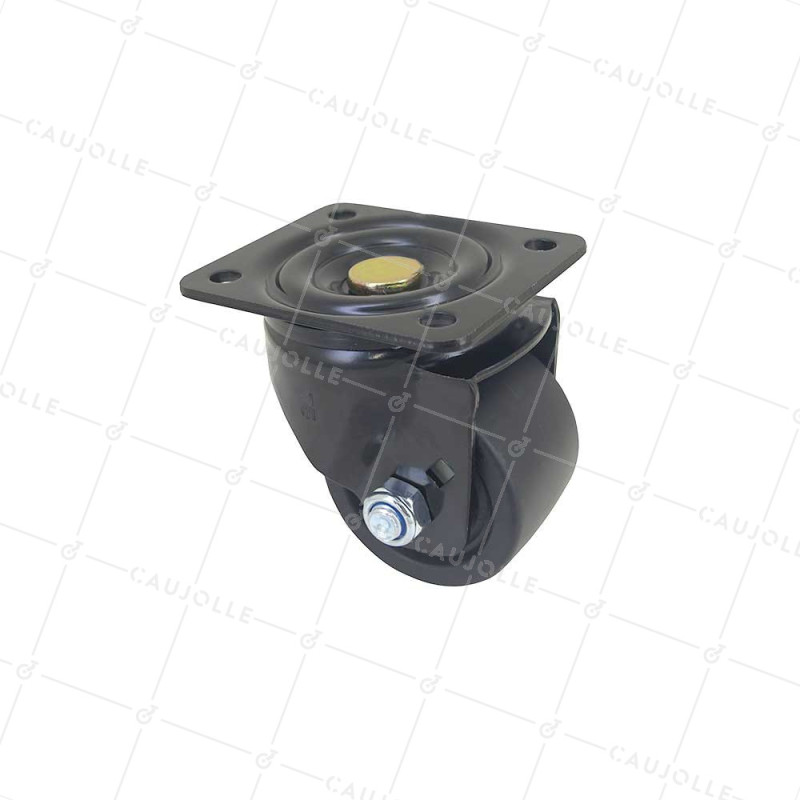

Castor EXTRA LOW FIBER NYLON SWIVEL CASTOR DIAMETER 75 MM LOAD 400 KG - BLACK SURB 75P

€22.70 Tax included

REF: 99319

Castor ultra low of very high quality in fiber nylon. The load capacity is particularly high for a model of this diameter as you can load up to 1200 kg on 4 units (steel thickness of 4 mm on the plate). The material allows for increased resistance to static loads over the long term (so no crushing or permanent deformation is to be expected). 2 ball bearings are present inside the wheel to limit the effort when starting the wheel.

Its second advantage is its very low bulk which only exceeds the narrowest edge of the plate by 2 mm. You can therefore install them under industrial machines without the mount hitting the feet of the technicians.

Expédition sous 24h ouvrées

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 75

  • Load capacity in kilograms 400

  • Material of the tread Nylon filled with glass fibers

  • Type of bearing Bearing ball bearings

  • Type fixation Pivoting to plate (plate)

  • Height castor in mm 105

  • Specificities Heavy load

  • Dimension plate in mm 105 multiplied by 85 equals 8,925.

  • Distance center distance in mm 60x80

  • Fixation diameter in mm M8

  • Width of the wheel in mm 50

  • Width of the tread in mm 50

  • Offset in mm 17.5

  • Dimensions in mm 55

  • Shore hardness 75 Sh D does not appear to be a phrase or sentence in either French or English. It may refer to something specific that is not translatable without additional context. Could you please provide more information or clarify what you would like translated?

  • Maximum speed in km/h 4

  • Minimum / Maximum Temperature in °C -30/+80

  • Weight 1.170 Kg
