EXTRA-LOW SWIVEL CASTOR IN CAST IRON AND POLYURETHANE HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU • Caujolle
  • LOW-HEIGHT CAST IRON AND POLYURETHANE WHEEL HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU
  • LOW-HEIGHT CAST IRON AND POLYURETHANE WHEEL HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU
  • LOW-HEIGHT CAST IRON AND POLYURETHANE WHEEL HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU
How to choose your roulette?

EXTRA-LOW SWIVEL CASTOR IN CAST IRON AND POLYURETHANE HEAVY LOAD DIAMETER 50 MM HEIGHT 64 MM LOAD 160 KG - SURB 50 CAST IRON PU

€54.80 Tax included

REF: 99300

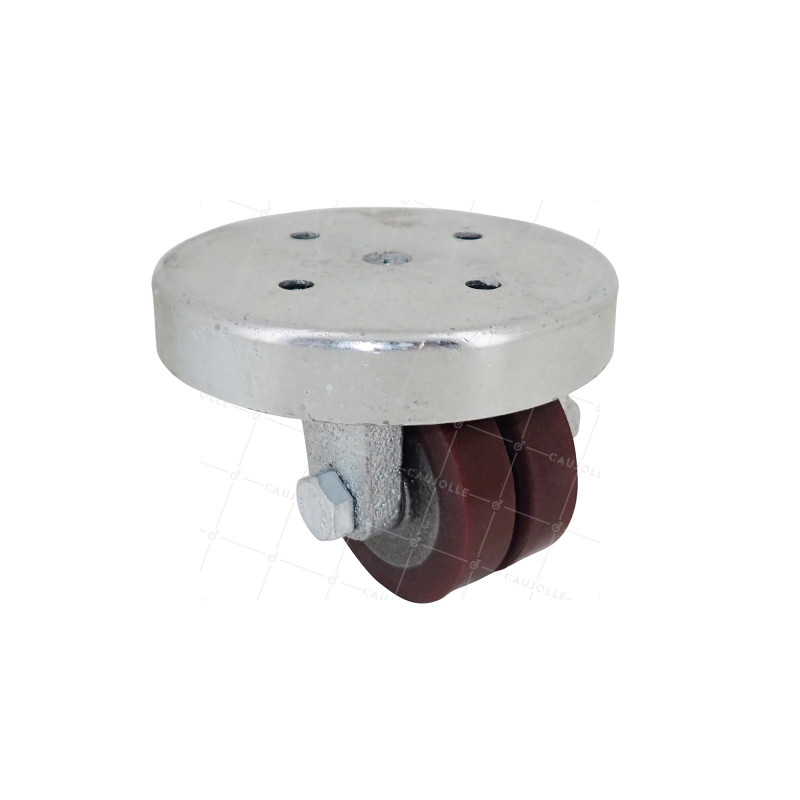

Castor swivel for handling, diameter 50 mm, high load, low height, equipped with two cast iron wheels with polyurethane coating to avoid damaging the floor. It can withstand a load of 160 kilograms per unit.

This product is particularly suitable for moving very heavy items on smooth surfaces.

It is well-suited for stage platforms in theaters or for moving machines in industry that have height constraints. Indeed, the total height once installed is only increased by 64 mm.

The attachment is done from below using 4 holes of 6 mm and can be adapted to any support by bolting it.

This product can also be welded directly to your support.

Expédition sous 24h ouvrées

Payment Secure
Add to Compare Remove from Compare

Technical sheet

  • Diameter of the wheel in mm 50

  • Load capacity in kilograms 160

  • Material of the tread Polyurethane

  • Type of bearing Plain bore hub

  • Type fixation Pivoting to plate (plate)

  • Height of the roulette in mm 64

  • Specificities Heavy load
    Non-staining

  • Dimension plate in mm 95

  • Distance between axes in mm 36x36

  • Diameter of fixation in mm M6

  • Wheel width in mm 30

  • Width of the bearing band in mm 2x 13 translates to "2 times 13" in English.

  • Offset in mm 15

  • Dimensions in mm 47.5

  • Weight 1.154 Kg
